F410D
Product characteristics
High-speed, fixed-level vertical machining center with accumulated know-how of Hyundai Wia and the latest technology

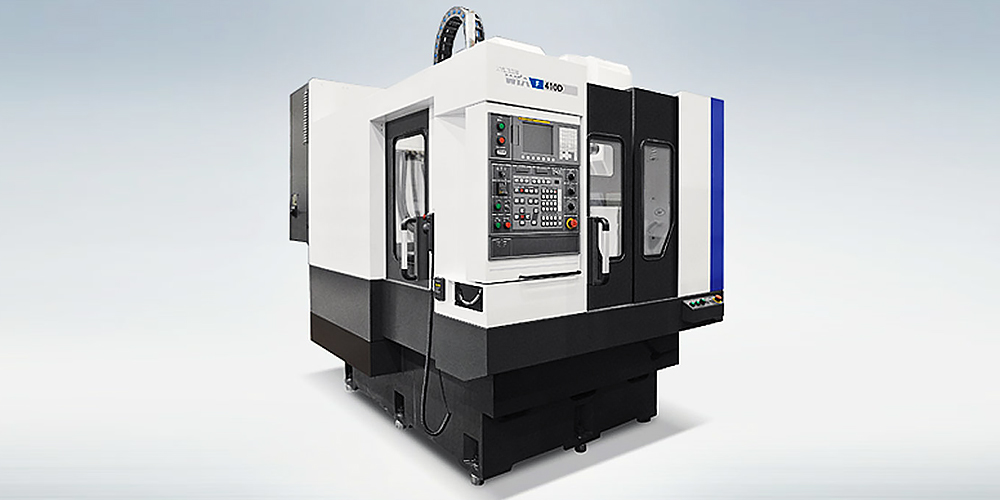

Product picture
| Table size mm(in) | 2X650 X 410 | Transfer distance(X/Y/Z) mm(in) | 570/410/580 |
|---|---|---|---|
| Table load weight kg | 2 - 250 | Rapid feed rate(X/Y/Z) m/min | 36/36/30 |
| Main spindle taper NT | BT 40 | Maximum number of main spindle rotations r/min | 10,000 |
| Main spindle output W(HP) | 18.5/15 | Tool hold count EA | 24 |
