Introduction Of Item

Stand-alone system

Product characteristics

From TYPE as standard, Offer suggestions and designs that are appropriate for equipment requirements, and provide your own products with excellent quality We have designed, built, painted and assembled all of the processes Built as ONE-STOP MANUFACTURING SYSTEM Respond to emergency delivery dates and gain A/S,
superior price competitiveness.

Product type

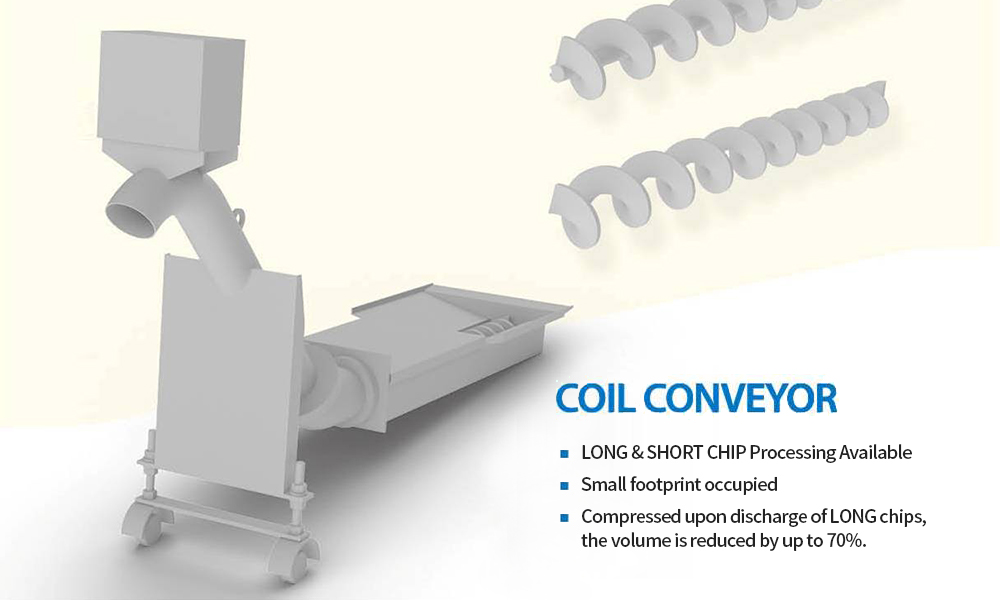

- COIL CONVEYOR

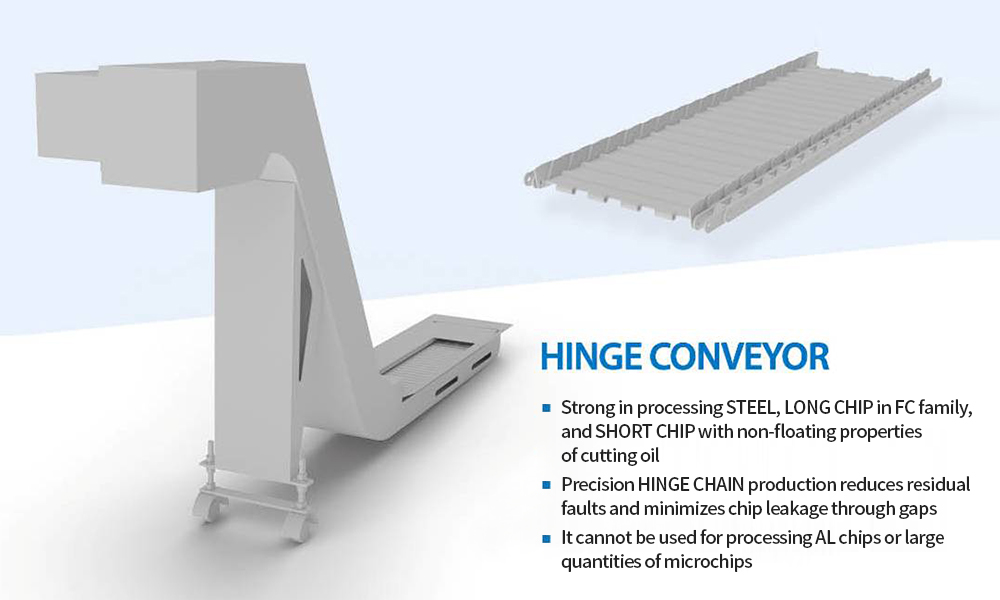

- HINGE CONVEYOR

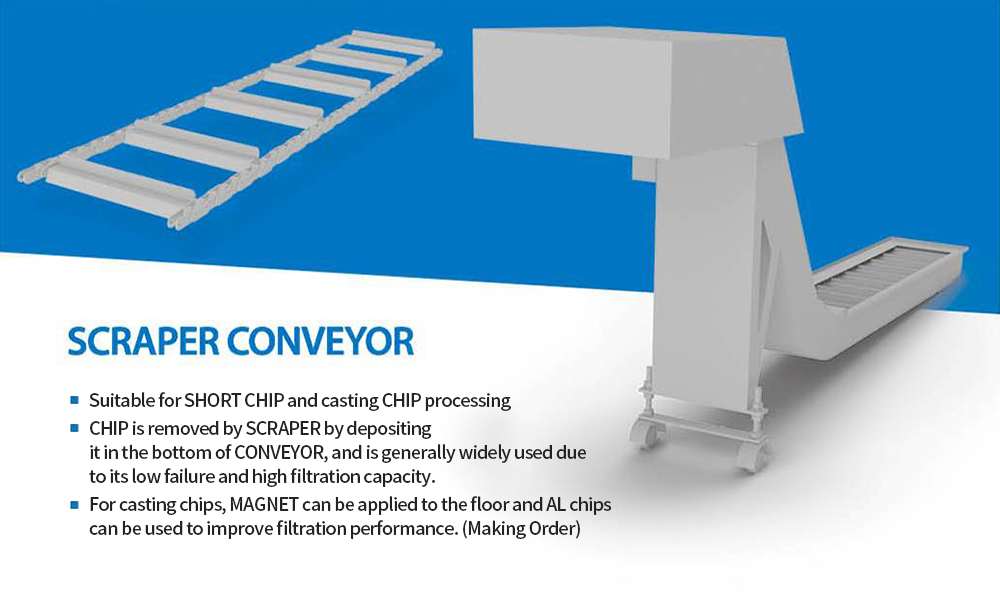

- SCRAPER CONVEYOR

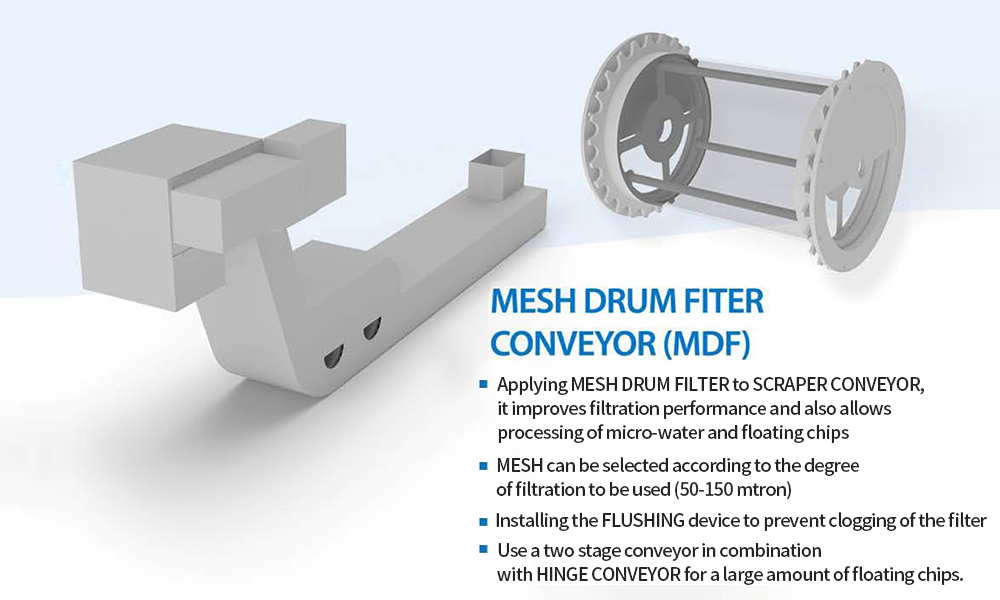

- MESH DRUM FILTER CONVEYOR

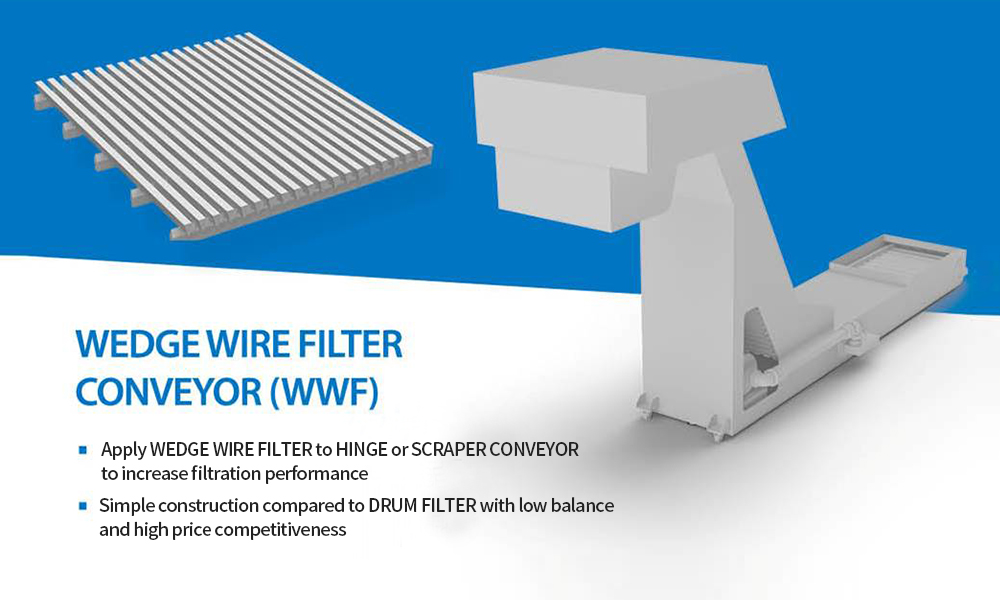

- WEDGE WIRE FILTER CONVEYOR

CHIP FILTRATION DEGREE CUTTING OIL CONVEYOR
QUALITY OF THE METERIAL SHAPE LINEAR CONTENT SCRAPER HINGE SCREW MG SCRAPER HINGE
SCRAPER DRUM(the first stage) DRUM(second stage)
FC
FCD		 POWDER
90%↑		 SAND↓ GENERAL 300μ↑ WATER-SOLUBLE ○ × × ○ × ×
NON-WATER AVAILABILITY
LOW 200μ↑ WATER-SOLUBLE ○ × × ○ × ×
NON-WATER AVAILABILITY
MIDDLE 100μ↑ WATER-SOLUBLE △ × × ○ × ×
NON-WATER AVAILABILITY
TOP 50μ↑ WATER-SOLUBLE ADD ADD ADDITION OPTION
THE BEST 30μ↓ NON-WATER AVAILABILITY
SHORT
CURL 90%↑		 50mm↓ GENERAL 300μ↑ WATER-SOLUBLE ○ × △ ○ ○ ×
NON-WATER AVAILABILITY
LOW 200μ↑ WATER-SOLUBLE ○ × × ○ ○ ×
NON-WATER AVAILABILITY
MIDDLE 100μ↑ WATER-SOLUBLE ○ × × ○ △ ×
NON-WATER AVAILABILITY
TOP 50μ↑ WATER-SOLUBLE ADD ADD ADDITION OPTION
THE BEST 30μ↓ NON-WATER AVAILABILITY
STEEL SHORT
CURL 90%↑		 50mm↓ GENERAL 300μ↑ WATER-SOLUBLE △ ○ ○ △ △ ○
NON-WATER AVAILABILITY
LOW 200μ↑ WATER-SOLUBLE ○ ○ △ △ △ ○
NON-WATER AVAILABILITY
LONG
CURL 90%↑		 150mm↓ MIDDLE 100μ↑ WATER-SOLUBLE ○ ○ △ △ △ ○
NON-WATER AVAILABILITY
TOP 50μ↑ WATER-SOLUBLE ADD ADD ADDITION OPTION
THE BEST 30μ↓ NON-WATER AVAILABILITY
AL SHORT
CURL 90%↑		 50mm↓ GENERAL 300μ↑ WATER-SOLUBLE × × ○ × ○ ○
NON-WATER AVAILABILITY
LOW 200μ↑ WATER-SOLUBLE × × ○ × ○ ○
NON-WATER AVAILABILITY
MIDDLE 100μ↑ WATER-SOLUBLE × × △ × ○ ○
NON-WATER AVAILABILITY
TOP 50μ↑ WATER-SOLUBLE ADD ADD ADDITION OPTION
THE BEST 30μ↓ NON-WATER AVAILABILITY
LONG
CURL 90%↑		 150mm↓ GENERAL 300μ↑ WATER-SOLUBLE × × ○ × × ○
NON-WATER AVAILABILITY
LOW 200μ↑ WATER-SOLUBLE × × △ × × ○
NON-WATER AVAILABILITY
MIDDLE 100μ↑ WATER-SOLUBLE × × △ × × ○
NON-WATER AVAILABILITY
TOP 50μ↑ WATER-SOLUBLE ADD ADD ADDITION OPTION
THE BEST 30μ↓ NON-WATER AVAILABILITY
* Changes can be made depending on equipment characteristics, type of workpiece, etc.

Product picture
